RASLOUW RIDGE
For Sale!
See Property Sales For More Details
or rent from See Rental Schedule on Home Page For Availability
• Completion 1 August 2017
• 60 Sectional Title Units

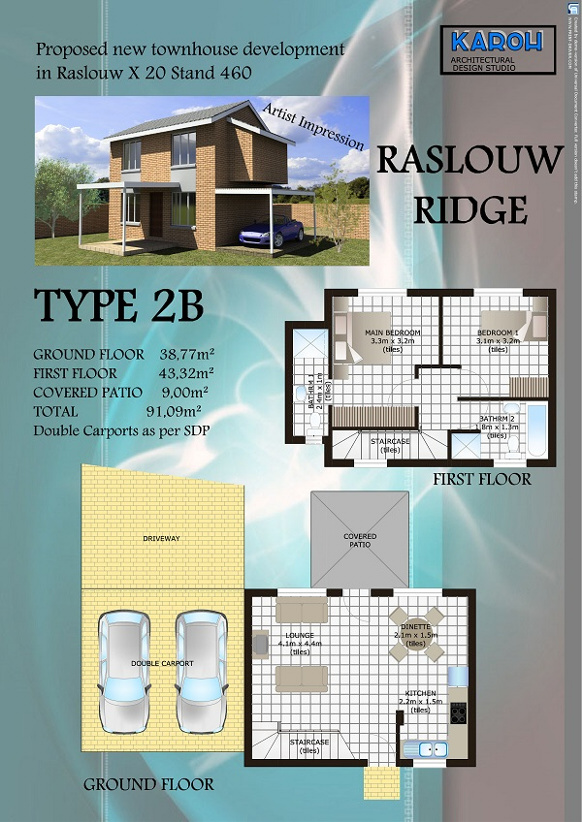

• 2 Bedroom, 2 Bathroom - 91.09m² - Single or Double Carport as per SDP

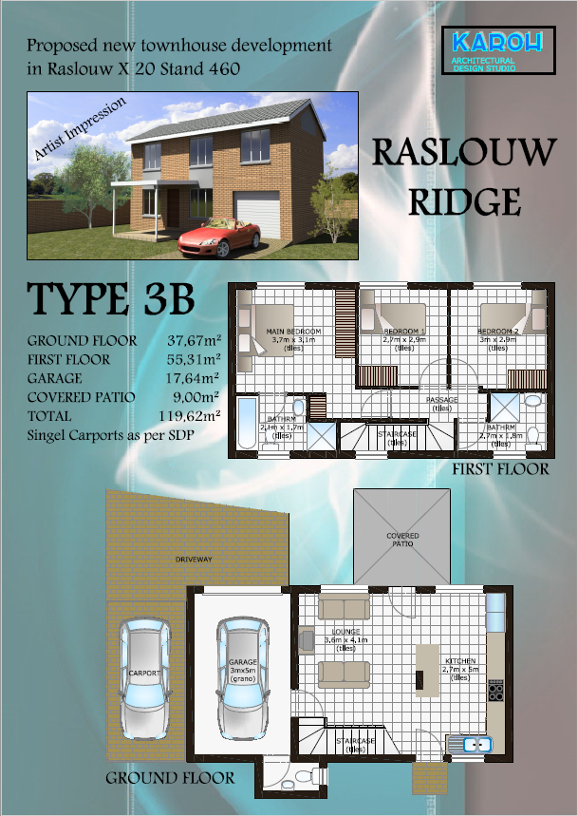

• 3 Bedroom, 2 Bathroom - 122m² - Single Garage, Carport as per SDP
• Xpanda Slam Lock Security Gates
• Extractor Fan in Kitchens
• Motorized Garage Doors
• Fully Tiled Floors
• 2 Tone Kitchens with Granite Tops
• Guest Toilet (3 Bedroom Units only)
• Private Garden
• Pet Friendly
• Electric Fencing
• Motorised Gate Access
These brand new Sectional Title Units are situated in Raslouw X 20, close to the N14 highway and Mall @ Reds, a brand new Engine garage has opened on the door step of the Complex. Each unit has its own private garden making this the perfect family home
Don't delay contact us now!!!
zandra@porta.co.za / 082 602 4451
SPECIFICATIONS
FOUNDATIONS
Foundations will be concrete as per Engineer’s detail.WALLS AND FINISHES
External walls: plaster (scratch finish) with semi-face plinth and plastered features
Internal walls: stock bricks, plastered, sponge finished, painted
Boundary walls: Semi-face with cement stock brick panels, max. 1,8m high with 5 strand electric fence at top
Screen walls: 1.8m high maximum, patterned double sided precast concrete
Brickforce will be used in all brick walls
Window sills: internal – plastered
External – plastered brick on edge
Paint: internal – broken white sheen
External – super acrylic earthly colour
ROOFS
Pitch roof: concrete roof tiles on gangnail trusses
Pitch: Type 2a & 3a - 26º
PATIO
0.5mm Full hard IBR roof sheeting
Floor: edged with bevel pavers
FLOOR FINISHES
Tiles or similar to all floors
Tile skirting or similar to all floors
WALL TILING
Kitchen: Wood look alike (tile) boarder above granite and tiled with 330 x 330 tiles to bottom of top cupboards
Bathrooms: +/- 1,2m from floor with mosaic finish. Shower: 1,8m high
CEILING
Rhino board painted with 70mm plain cornices (or PVC tongue and groove)
WINDOWS
All Frames: Steel, burglar bars on openers only
Glazing will be obscure glass in bathroom & clear float glass to other windows
DOORS AND FRAMES
Entrance doors will be steel frame & wooden doors
Internal doors hollow core, steel frames painted with white enamel, fire door to garage
2 Lever locks with chrome handles to internal doors, 3 lever locks with brass coated handles to external doors
CURTAIN TRACKS
Curtain tracks installed - Single rails in kitchen bathrooms, Double in bedrooms and dining/lounge
BUILT-IN CUPBOARDS
As per BIC plan layout, max. 2,1m in main bedroom & 1,2m in other bedrooms
Linen cupboards as per plan & BIC drawing(where applicable)
All white melamine post form doors, one white knob, no locks. Shelves natural chipboard with white edging.
KITCHEN FITTINGS
See kitchen layout drawing.(may differ from architect’s drawing)Double bowl sink
White or coloured woodgrain cupboards with 30mm Rustenburg granite tops with 30mm Max as per display board
STOVE
Hob and Oven from Unify or equivalent, black (Extractor fan included)
PLUMBING, SANITARY AND TAPS
One 150lt geyser (Compatible for solar panel)
One external hose bib tap, at gully
One cold water inlet & outlet – w/m in kitchen
WC’s with matching cistern
All taps; Cobra Stella range or similar - as per display board
Bath to be 1 700 fiberglass, u/tile mixer tap & spout
Kitchen double sink, swivel mixer
Shower: u/tile mixer and spout
HWB in bathroom on pedestal, with mixer tap
Bathroom fittings installed (Mirror, Toilet roll holder, soap dishes & towel rails/rings
Single chrome towel rail to each bathroom, +/- 900mm long
Cromadek roof gutters and downpipes
ELECTRICAL INSTALLATION
One Geyser Point
Single phase supply
Light points as standard layout 1/room as per new building regulations
Kitchen – 1 x fluorescent type 600mm double tube & diffuser as per new building regulations
Outside lights: wall mounted bulkhead or similar to front of unit.
One TV point connection in lounge area(no arial & cabling - conduit only)
Plug points:
2 x double on kitchen counter
1 x single per appliance
2 x double in lounge/dining room
2 x double in main bedroom
2 x double in other bedrooms
1 x double in garage - Where applicable
Street lights: Parking, carport areas and walkways - min spec
EXTERNAL WORK
Roads: Rectangular cement paving bricks or clay bricks. Internal walkways to match roads
Main Entrance: automated controlled sliding gate
Internal gardens to be laid out with lawn only
One garden gate included
1 x fold away washing line 1,5m long
GENERAL WORKS
No external contractor shall be allowed on site to do any work without the written consent from the developer/seller, nor shall the purchaser be allowed to arrange any additions or changes to the property without the knowledge of the project manager. Any alterations, additions or changes to the property must be in writing and be accepted by the SELLER and PURCHASER prior to commencement of any works.
DISCLAIMER
All marketing material consists of artist impressions and these specification and all materials are based on the approved building plans.
SITE VISITING HOURS FOR PROGRESS INSPECTION BY ARRANGEMENT 8am – 5pm ONLY!!!
NO PERSONS will be allowed on the construction site during WORK hours without prior arrangement with the agent or project manager.

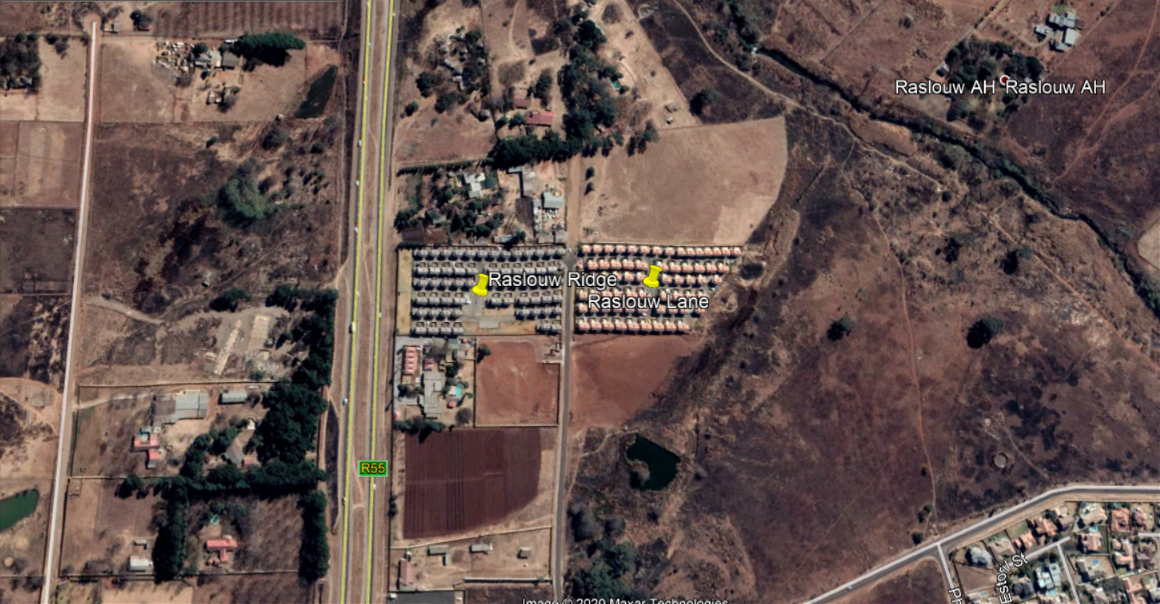

Location
GPS Co-Ordinates: 25°51'8.68"S 28° 6'40.47"E
Central to Centurion
Stand 460 Raslouw x 20

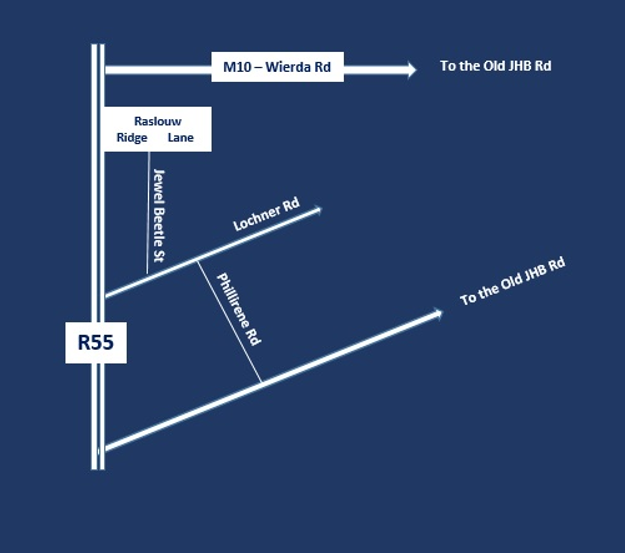

Map
